Technical Specifications

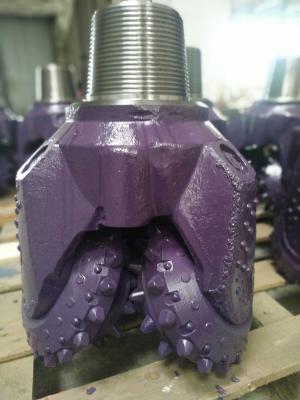

17 1/2 RS05

Diameter: 444.5mm (17 1/2")
IADC Code: 435
Design number: UT442
State standard designation: МЗ-ЦГВУ


Specification

Gradient angle of axle journal 33°
Axle journal offset relative to drill bit axis 10.00 mm
Bearing type Roller bearing
Sealing Elastomer
Total number of inserts (inner/heel row) 118 (66/52)
Total number of insert rows (inner/heel row) 10 (7/3)
Number of changeable nozzles 4
Connecting thread З-177 (7 5/8 REG)
Drill bit net weight, kg 220.00
Drill bit gross weight, kg 247.50


Recommended Drilling Conditions

Rotation speed 300-40 rpm
Thrust load 7.00-25.00 t (15400 - 55000 lbs)
The lower level of rotation speed value corresponds the upper level of thrust load value and vice versa.


Purpose

The drill bit is designed for drilling soft abrasive formations


Design Features

Combined circulation (central and side) for what the screw from the central unit must be unscrewed

The shirttail and leg entering edge are hardfaced with tungsten carbide

The leg is protected with tungsten carbide inserts

Tungsten carbide inserts on cone gages
