Technical Specifications

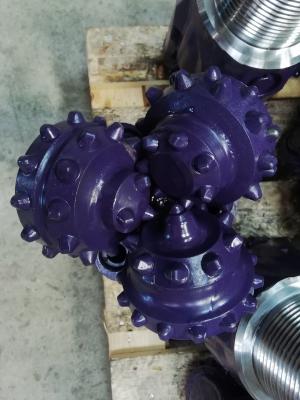

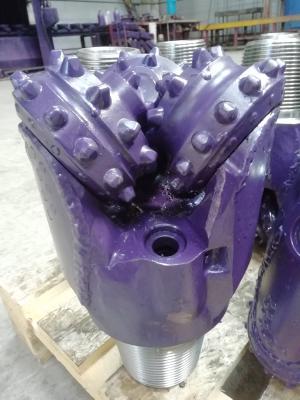

7 1/2 RS05

Diameter: 190.5mm (7 1/2")
IADC Code: 425X
Design number: UT457
State standard designation: МЗ-ГНУ


Specification

Gradient angle of axle journal 33°
Axle journal offset relative to drill bit axis 6.40 mm
Bearing type Roller bearing
Sealing Elastomer
Total number of inserts (inner/heel row) 81 (42/39)
Total number of insert rows (inner/heel row) 9 (6/3)
Number of changeable nozzles 3
Connecting thread З-117 (4 1/2 REG)
Drill bit net weight, kg 30.00
Drill bit gross weight, kg 31.50


Recommended Drilling Conditions

Rotation speed 200-40 rpm
Thrust load 3.00-10.00 t (6600 - 22000 lbs)
The lower level of rotation speed value corresponds the upper level of thrust load value and vice versa.


Purpose

The drill bit is designed for drilling soft abrasive formations


Design Features

Side circulation. Side jetting nozzles

The leg shirtttail and the entering edge are hardfaced with tungsten carbide

The leg shirttails are protected with tungsten carbide inserts

Tungsten carbide inserts on cone gage
